Description

THIS IS A PHYSICAL KIT. PURCHASE THE 3D-PRINTABLE FILES HERE.

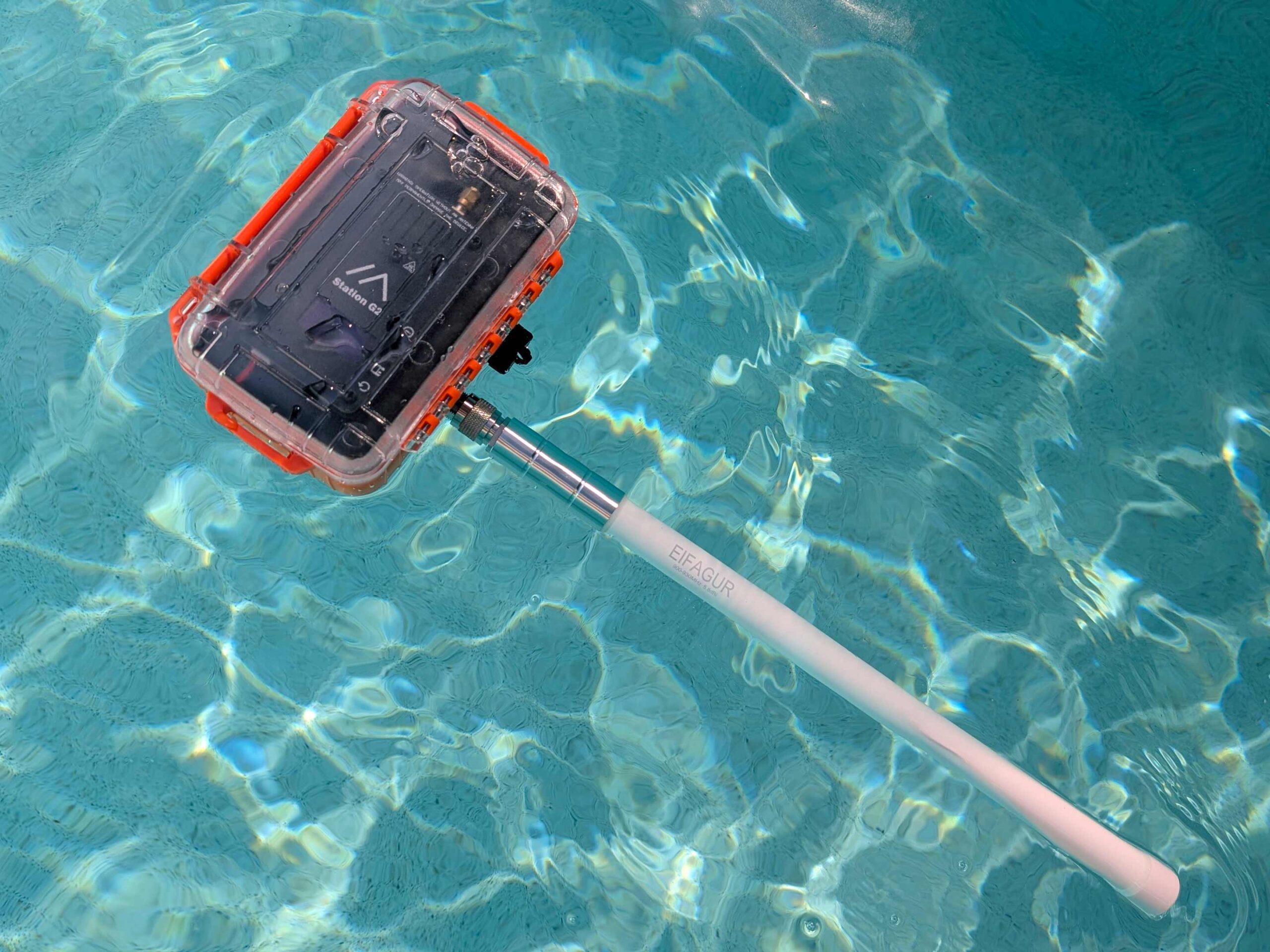

Designed for marine use – waterproof / floating when properly sealed. GPS module compatible.

Printed from PLA Carbon Fiber (PLA-CF) filament. Includes pre-installed brass threaded inserts and necessary socket-head stainless hardware.

Bulkhead fittings (power/data and antenna) and internal USB connectors are optional with purchase but required for use of this enclosure.

STL files are available for 50%-off list price (select from dropdown menu) when purchased with this kit.

Base kit includes:

• All necessary 3d printed parts
• Preinstalled M2x4x3.2 Heat-Set Insert Brass Knurled Nuts (Qty: 13)
• M2x4 Hex Socket Head Cap Screw Bolts (Qty: 7)
• M2x6 Hex Socket Head Cap Screw Bolts (Qty: 6)

For use with the following components (not included / sold separately):

• Hlotmeky Small Waterproof Box Dry (required) Amazon
• B&Q Consulting Station G2 kit (required) B&Q Consulting Shop
• VEEKTOMX Mini Power Bank 10,000mAh (required) VEEKTOMX, Amazon
• Antenna (or antenna cable) with Type-N (male) connector (required)
• Internal Components (required)
  • SMA (Male) to N (Female) Bulkhead 7.8in Cable Amazon
  • USB-C (Female) PD 15V DC Fixed Voltage Power Trigger Amazon
  • U-Shape Angle USB-A Adapter Amazon
  • USB-C (Male) to USB-A Adapter Amazon
  • Dual USB C (Male) Right Angle 4in Cable Amazon
• SeeedGrove “Air530Z” GPS Module (recommended) SeeedStudio, Amazon

Includes 1-year warranty from manufacturing defects on 3d printed parts only. NO WARRANTY / NO RETURNS ON DIGITAL DOWNLOADS.

Downloaded files are for personal use only / not for resale or other unauthorized distribution.

Designed, 3D Printed, and Assembled by SECTION 6 in Florida, USA.
